Description

Kit Specifications:

• Material: 4 carbon steel specimens & 4 stainless steel specimens (see detail below)
• 8 Piece Specimen Set for Training and Qualification
• Contains 20 “Real Flaws”:  Each specimen contains two to four “real flaws” designed to meet Appendix VII specifications.
• Specimens are manufactured to FlawTech’s advanced tolerance of +/- 0.080″.
• No two specimens are alike.  Buy two set, one for testing and one for training.
• Document package includes CAD drawings, Certificates of Conformance, and NDT reports.
• Weight is ~300LBS; Because of weight, special shipping considerations apply.
• Custom options available such as 10% notches, blank specimens, and the purchase of individual flawed specimens.  Contact FlawTech for more details.

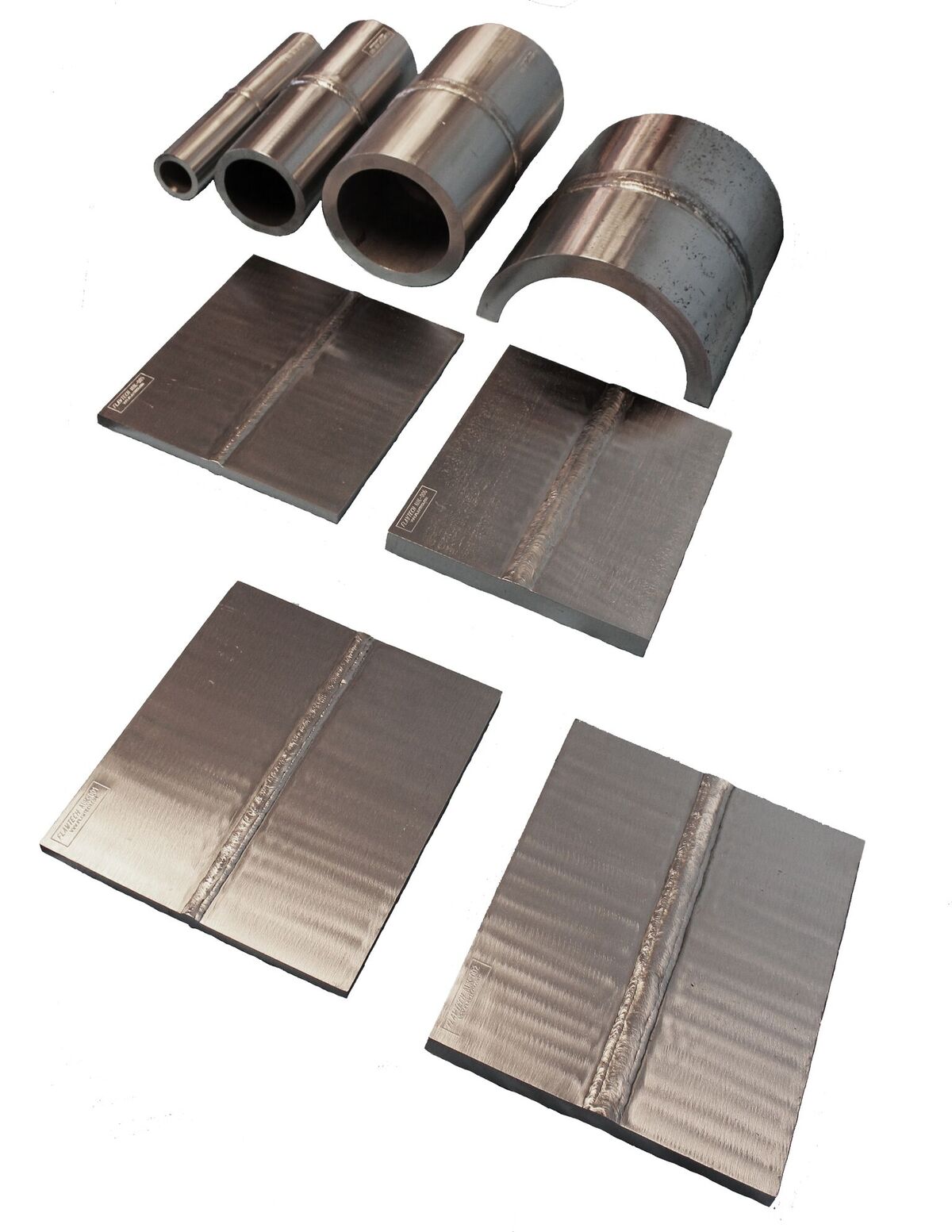

Specimen Detail:

2 – Welded Plates
(1) Carbon Steel Plate:  #A7-CS-005
(1) Stainless Plate:  #A7-WW-005
0.5″ X 10″ X 12″

2 – Welded Plates
(1) Carbon Steel Plate:  #A7-CS-010
(1) Stainless Plate:  #A7-SS-010

1 – Welded Pipe
(1) Stainless Pipe:  #A7-SS-020
2″ SCH160 X 12″

1 – Welded Pipe
(1) Carbon Steel Pipe:  #A7-CS-040
4″ SCH160 X 12″

1 – Welded Pipe
(1) Stainless Pipe:  #A7-SS-060
6″ SCH160 X 12″

1 – Welded Pipe
(1) Carbon Steel Pipe:  #A7-CS-100
(180 degree Segment)
10″ SCH160 X 12″
